Omega F
8"x10" Enlarger

Introduced: 1965
Discontinued: 1973

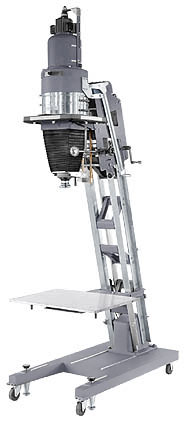

Omega FC 8x10 Condenser Enlarger

Omega had manufactured 10x10 enlargers for the military since WWII. It took some time, but the 8x10 Omega F was finally offered to photographic and graphic arts professionals in 1965.

Customers had the choice of a triple condenser or Chromega lamphouse. Standard features included a rotating glass negative carrier, built-in masking control, heavy duty castered floor stand with quad aluminum girders, extra long bellows, and 3 position 24"x32" baseboard. The high output Xenomega light source was an option for graphic arts applications.

The F was primarily intended for 8x10, 5x7 and 4x5 formats. For smaller negatives, an accessory Small Format Attachment was mounted in place of the usual lens mount.  Similar in appearance to the auxiliary focusing attachment, it had a slot to accept its own series of small format negative carriers.

The Chromega F lamphouse covered 8x10 and was therefore not suitable for the large aerial roll film format. There were no accessory mixing spheres for smaller formats. When the Dichroic lamphouse and Chromega F Dichroic chassis were introduced, an adapter kit allowed retrofitting the dichroic lamphouse to the older style chassis.

Used Advice:  The chassis is fully serviceable but lamps and parts for the older lamphouses are rare. The enlarger is large and heavy, so be prepared for significant shipping costs.  Missing accessories can be pricey, so check that the unit is complete.


Enlargers | Components | Neg. Carriers | Lens Mounts | Lens Discs | Accessories | Lamps

Enlargers



Status

406-002 Omega FC Condenser Enlarger D
406-003 Chromega F Enlarger (tungsten) D
406-006 Chromega F Enlarger (halogen) D
406-012 Omega FC Condenser Enlarger with Xenomega Light Source D


Major Components

406-001 F Enlarger Chassis only  (less lamphouse and negative carrier) D
406-801 F Condenser Lamphouse  D
406-802 Chromega F Lamphouse (tungsten) with Power Supply    D
407-035 Xenomega Pulse Xenon Arc unit 190-250v (for condenser lamphouse) D
407-038 Adapter for Xenomega to fit "FC" lamphouse D
406-805 Chromega F Dichroic Lamphouse  (requires 429-139 adapter) DR
406-815 Chromega F Dichroic II Lamphouse (requires 429-139 adapter) DL
412-035 Chromega F Dichroic Power Supply  (replacement) DL



Negative Carriers

423-600 8"x10" Universal Glass Carrier D
429-105 Attachment for Small Negatives  (condenser lamphouse only) D
423-705 Glass Carrier for 35mm  (for 429-105) D
423-706 Glass Carrier for 6x6cm  (for 429-105) D
423-707 Glass Carrier for 6x7cm  (for 429-105) D
423-703 Glassless Carrier for 35mm  (for 429-105) D
423-704 Glassless Carrier for 6x6cm  (for 429-105) D
423-702 Glassless Carrier for 6x7m  (for 429-105) D
423-610 Caesar-Saltzman AGT Adjustable Glassless Tension Carrier D
423-714 Carrier for 9½" x 500' Aerial Film  (condenser lamphouse only) D
423-713 Carrier for 5" x 500' Aerial Film D
473-099 Replacement Glass set for 423-600 carrier O


Lens Mounts

421-180 Flat Lens Mount for 162mm lenses and 180mm Componon D
421-181 1½" Cone for 190mm & 210mm lenses   DL
421-182 1½" Cone for 300mm lenses D
421-183 Blank Recessed Cone for 50mm  (for 429-105) D
421-184 Recessed Cone for 50mm Componon  (for 429-105) D
421-185 Recessed Cone for 50mm Omegaron or Rodagon  (for 429-105) D


Lens Discs

421-000 Blank Flat Lens Disc  (for 429-105) DL
421-001 Lens Disc with 39mm hole  (for 429-105) DL
421-002 Flat Lens Disc with 32.5mm hole  (for 429-105) DL
421-003 Flat Lens Disc with 25mm hole  (for 429-105) D
421-015 Flat Lens Disc for 180mm Componon and 210mm Omegaron D
421-054 Flat Lens Disc with 52mm hole DL
421-055 Flat Lens Disc with 62mm hole DL
421-010 39mm Leica thread Lock Ring DL
421-014 50mm threaded Lock Ring DL



Accessories

404-846 Voltage Stabilizer (400W, 117V, 60Hz)  D
404-850 Voltage Stabilizer (500W, 115V, 60Hz)  D
412-004 Power Lift with remote control switch  DL
412-020 Exhaust Blower for use with 300W lamp D
429-003 Red Safety Filter   DR
429-025 Infrared Interference Rejecting Filter #251 D
429-026 Filter Holder for Varigam and Rejecting filters DR
429-084 Auxiliary Focusing Attachment D
429-098 Filter Dial Illuminator  (Chromega F only) D
429-139 Adapter Kit to fit Dichroic Lamphouse to 406-001 F chassis D


Lamps

471-023 BFW, 150W 20V lamp for Chromega F tungsten lamphouse D
471-024 PH300 Opal Enlarger Lamp, 150W 125V lamp for condenser lamphouse D
471-025 PH301 Opal Enlarger Lamp, 300W 125V lamp for condenser lamphouse D
471-027 Tungsten Halogen Lamp, 150W 24V for Chromega F halogen lamphouse C
471-029 Quartz Halogen Reflector Lamp, 250W 22.5V for Chromega F Dichroic lamphouse C
471-031 Panel Lamp, 6W 120V for Chromega F Dichroic lamphouse C
471-036 PXA Xenon Lamp assembly for 407-035 Xenomega light source  C*
471-045 Lamp Indicator lamp for Dichroic Lamphouse Power Supply O

 *no longer supplied by Omega - available from other sources
