Loupes
& Magnifiers
|
|
PK2038
- Loupe 4X
A high resolution 4X loupe with achromatic lens. Interchangeable translucent and solid black
skirts are provided to ensure optimum performance with both ambient and transmitted light. The Peak
4X Loupe is the choice of many large format photographers for checking focus on the ground glass.
Supplied with neck cord and lens cap. 51 x 51 x 65mm, 80g |
|
|
PK1960
- Loupe 5X
An economy priced loupe for general use. It features a tall clear acrylic skirt
providing excellent illumination of the subject. 38mm ø
X 65mm, 25g.
|
|
|
PK1006WZ3
- 6X Folding Magnifier (Linen Tester)
A popular magnifier particularly due to it's very compact size
when folded. It features a black finish zinc body and 2-element lens. 50mm x 40mm x 51mm (unfolded),
63g.
|
|
|
PK2018
– Loupe 8X (35mm
Loupe)
This very popular loupe is specifically designed to allow examination of the full image area of a
35mm negative or transparency without having to reposition the loupe. It features a large
3-element lens and clear rectangular skirt. Supplied with neck cord. 49
x 41 x 47mm, 54g
|
|
|
PK2032
- Plaloupe 10X
A
light weight, economy priced, all-purpose magnifier of plastic construction with
2-element lens. 45mm
ø x 40mm, 18g
|
|
|
PK1961
– Loupe 10X
The Peak 10X Loupe features a Kellner
type 2-element achromatic lens. This is a bright, sharp general purpose loupe, particularly suited
to inspection of negatives.
34.5mm ø x 41.5mm, 27.5g
|
|
|
PK1962
– Loupe 15X
A
higher magnification version of the 10X Loupe, the lens of the 15X loupe is a
3-element, 2-group design, providing excellent sharpness and contrast.
36mm ø x 34.5mm, 18.5g
|
|
|
|

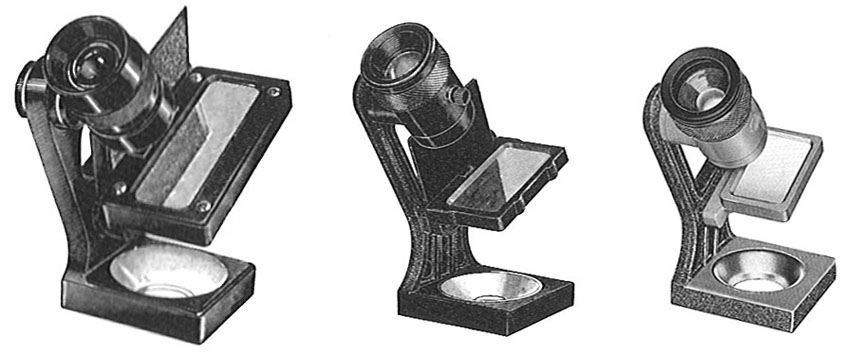

Enlarging
Focusers
|
|
|
Even
the finest enlarging lens cannot produce a sharp print if not focused accurately. Peak
Enlarging Focusers are recognized by darkroom professionals and enthusiasts world-wide as being the
very best available. All models are based on the "aerial image" principle, which ensures a
bright crisp image. The front surface mirrors prevent ghost images, and rectangular mirrors allow
the focuser to be moved away from the image center. The fine quality eyepieces include adjustment
for diopter correction. A special "BG" filter, included with the Type I Focuser, can
use used for critical B&W printing to match the light visible for focusing to the spectral
sensitivity of the photographic paper.
|
| |
|
Specification
/ Model |
Type
I
Critical
Focuser |
Type
II
Grain
Focuser |
Type
III
Enlarging
Focuser |
|
Magnification |
10X |
10X |
10X |
|
Mirror
Size |
86 x
26mm |
53 x
27mm |
43 x
25mm |
|
Max.
Viewing Angle from Optical Axis |
30° |
20° |
10° |
|
Eyepiece
Construction |
3
elements, 2 groups |
4
elements, 3 groups |
2
elements, 2 groups |
|
Diopter
Adjustment |
-5 to
+5 |
-5 to
+10 |
-5 to
+5 |
|
Body
Construction |
die-cast
aluminum |
reinforced
resin |
resin |
|
Mirror
Cover |
felt-lined,
hinged |
felt-lined,
hinged |
plastic |
|
Dimensions |
80
x160 x140mm |
65 x
140 x140mm |
65 x
140 x140mm |
|
Weight |
643g |
280g |
174g |
|
BG
Filter |
included |
optional |
optional |
|
