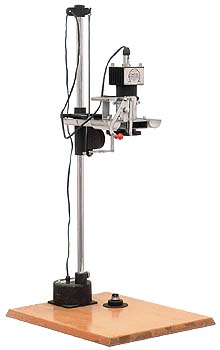

Omega A 35mm Enlarger

Omega A
35mm Enlarger

Introduced: 1938
Discontinued: 194x





With survival of the small company assured by solid sales of the Omega B, the Simmon Bros. were able to quickly expand the line, with the 35mm format Omega A following the B a few months later, thereby offering an even lower price point.

The Omega A was very similar to the B with vertical steel column, clear lamp and opal diffusion disc, lever focusing, and double condenser system. In the Omega A, however, the lamp was a low-voltage type, with power supplied from a transformer located at the base of the column. Because of the transformer, the standard Omega A was AC only, but later an AC/DC option using a 50W 120V lamp was also offered. The negative carrier was not designed to be easily interchanged, so versions specifically for Bantam and Robot formats were available as well.

As the low price leader in the Omega line, the A continued in production for some time after the war. Because quite a few of the original transformers have failed due to age, and the difficulty in obtaining replacement lamps, many Omega A enlargers found today have been modified to use a PH111A lamp.


Enlargers | Neg. Carriers | Lens Mounts | Accessories | Lamps

Enlargers

  Omega A Condenser Enlarger for 35mm   D
  Omega A Condenser Enlarger for Robot size   D
  Omega A Condenser Enlarger for Bantam size   D

Negative Carriers
  "Dustless" 35mm Filmholder   D

Lens Mounts
  Lens Board for Omega A D
  Leica Lens Mount  D
  Argus Lens Mount  D
  Kine Exacta Lens Mount  D
  Contax Lens Mount  D


Accessories

  Extension Attachment  (for small prints)  D
  2⅜" Single Unmounted Condenser lens  D
  Fabric Dust Cover  D


Lamps

  No. 1724 32CP, 6-8V clear S11 lamp  (for AC only model)    D
   50W 105-120V clear S11 lamp  (for AC/DC  model) D
