Omega E-6
5"x7" Enlarger

Introduced: 1964
Discontinued: 1973

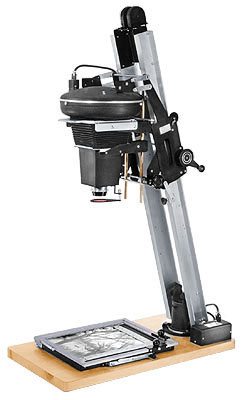

Omega E-6 XL with Omegalite E Lamphouse

Introduced several years after the Automega E-5, the Omega E-6 Enlarger was essentially a 5x7 version of the D-2XL.  Like the E-5, the E-6 could be purchased with Omegalite cold light head, or condenser lamphouse.  Since it was not limited by the autofocus mechanism, the E-6 had an extended XL length column.

Later, when the Chromega colorheads were introduced, initially only the 4x5 Chromega D lamphouse was available to be fit the E-6 chassis. It was not until 1968 that the first Omega 5x7 colorhead, the Super Chromega E, was introduced.  When the Super Chromega E Dichroic lamphouse arrived, the E-5 and E-6 enlargers were replaced by a an updated chassis with revised negative carrier system, and the Omegalite and condenser lamphouses were discontinued.

Used Advice: Some parts, such as most lens mounts and lens discs remained in production until recently, but other parts, such as negative carriers and autofocus tracks, may be difficult to find.


Enlargers | Components | Neg. Carriers | Lens Mounts | Lens Discs | Accessories | Lamps

Enlargers



Status

405-052 E6/OXL Enlarger with Omegalite Lamphouse D
405-051 E6/CXL Enlarger with Condenser Lamphouse D
405-057 Super Chromega E Enlarger with Super Chromega E Lamphouse D


Major Components

405-054 E6-XL Enlarger Chassis only  D
405-803 Omegalite E Lamphouse  D
405-801 9" Double Condenser Lamphouse  D
404-805 Chromega D Lamphouse with power supply  (requires 404-858 adapter) D
405-812 Super Chromega E Lamphouse with power supply  (requires 429-125) D


Negative Carriers

423-502 2¼" x 2¼" Glassless Sandwich Carrier D
423-503 1/2 Frame 5"x7" Glassless Sandwich Carrier D
423-504 9 x12cm Glassless Sandwich Carrier D
423-505 4" x 5" Cut Film Glassless Sandwich Carrier D
423-506 5" x 7" Cut Film Glassless Sandwich Carrier D
423-601 9 x 12cm Glass Sandwich Carrier D
423-602 4" x 5" Glass Sandwich Carrier D
423-603 5" x 7" Glass Sandwich Carrier D
423-521 100' Spool Glassless Rapid-Shift Carrier  (sample negative required) D
423-522 Special Plate Carrier for Glass Negatives  (sample negative required) D
423-995 Adapter Plate to allow use of D-2 carriers for 4x5 and smaller formats D


Lens Mounts

421-170 Flat Mount for 50-105mm lenses  DL
421-172 2" Cone for 135mm lenses  DL
421-173 3¾" Cone for 150-162mm lenses  DL
421-174 Square 6-1/8" Cone for 190-210mm lenses DL
421-175 Square 6-5/8" Cone for Kodak Ektar 7½" lens D
421-176 Square 5" Cone for 180mm lenses DL


Lens Discs

421-000 Flat Blank Lens Disc DL
421-001 Flat Lens Disc with 39mm hole DL
421-002 Flat Lens Disc with 32.5mm hole DL
421-003 Flat Lens Disc with 25mm hole DL
421-008 Flat Lens Disc with 50mm hole DL
421-013 Flat Lens Disc, Threaded for 39mm Leica thread DL
421-015 Lens Disc for 180mm Componon D
421-022 Flat Lens Disc with 42mm hole DL
421-023 Lens Disc for 180mm Componon-S DL
421-054 Flat lens Disc with 52mm hole DL
421-024 For 210mm Componon-S DL
421-055 Flat Lens Disc with 62mm hole DL
421-010 39mm Leica thread Lock Ring DL
421-014 50mm threaded Lock Ring DL


Accessories

404-858 Adapter to attach Chromega D lamphouse to E5/E6 chassis D
405-891 Adapter for D series Condenser Sets (condenser lamphouse only) D
407-035 Xenomega Pulse Xenon Arc unit 190-250v  (for condenser lamphouse) D
407-037 Adapter to fit Xenomega to E enlargers D
412-001 Power Lift Control, 110V D
412-005 Counter Weight  (required when using Power Lift on Omegalite models) D
412-010 Power Focus Control, 110V D
413-001 Heavy Duty Floor Stand D
429-003 Red Safety Filter  (early type with mounting post) DR
429-004 Red Safety Filter  (use with 429-029) DL
429-013 Portrait Diffusion Grid  (with mounting post) DL
429-021 3-Color Filter Holder  (for additive color printing or separations) DL
429-023 Under Lens Filter Holder for variable contrast filters DR
429-029 Under Lens Filter Holder for red and variable contrast filters DL
429-070 Wall Projection Attachment  (for mural size enlargements) DL
429-078 Electric Shutter for Omegalite models D
429-086 Auxiliary Focus Attachment  (for small enlargements and reductions) D
429-092 Heavy Duty Wall Mount  (should be used with 429-095 or 429-097) DL
429-095 Heavy Duty Wall Brace  (for maximum rigidity) DR
429-097 Heavy Duty Wall Brace  (later type) DL
429-099 Flexible Focusing Shaft Extension  D
FFS3125 Flexible Focusing Extension Kit K
429-125 Adapter to attach Super Chromega E lamphouse to E5/E6 chassis D
429-180 Booster Counter Balance Spring to fit Chromega E to Omegalite chassis DL
429-153 Light Integrating Sphere E for 5"x7"  (replacement)  (for 405-812) D
429-152 Light Integrating Sphere D for 4"x5"   (for 412-812) D
429-151 Light Integrating Sphere B for 2¼"x2¾" (6x7cm)   (for 405-812) D
429-150 Light Integrating Sphere A for 35mm and smaller   (for 405-812) D
472-103 Single Condenser 411/16" dia. D
472-107 Single Condenser 9" dia. D
473-016 Ground Glass 9" dia. D
473-084 Replacement Carrier Glass,  9 x12 cm  (pair) D
473-085 Replacement Carrier Glass,  4" x 5" cut  (pair) DL
473-086 Replacement Carrier Glass,  5" x 7" cut  (pair) DL
473-104 Heat Absorbing Glass 4¾" dia. DL
473-107 Heat Absorbing Glass 9" dia. D
479-013 Transparent Dust Cover D


Lamps

471-002 PH211 Opal Enlarger Lamp, 75W 120V for condenser lamphouse C
471-003 PH212 Opal Enlarger Lamp, 150W 120V for condenser lamphouse C
471-013 Circline Lamp 11½", 115V 32W, white, for Omegalite lamphouse  C*
471-021 No. 100T8/1 SC, 20V 100W  for Chromega D lamphouse C
471-027 Tungsten Halogen Lamp, 150W 24V for Super Chromega E lamphouse C
471-036 PXA Xenon Lamp assembly for 407-035 Xenomega light source  C*

 *no longer supplied by Omega - available from other sources
