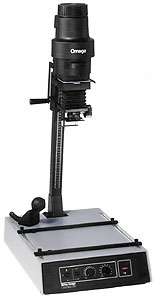

Concept Six CS-50 Dichroic Enlarger

Omega Concept Six
2¼"x2¼" Enlargers


Introduced: 1977
Discontinued: 1980



The B600 and Chromega B600 enlargers were used as the basis for a series of specialty enlargers called Concept Six. Instead of the usual baseboards, these enlargers had a special "structural foam molded" base incorporating a borderless 11"x14" easel and either a paper safe or exposure meter/timer combination.

The CS-25 model incorporated a reflected light, integrated reading probe and timer combination, while the CS-50 used a spot reading probe, had a wider timing range and could also be used for contrast measurements.

The Concept Six enlargers overlapped the B600 and C700 enlargers, so were sold with both types of lamphouses.

Used Advice: Since the Concept Six enlargers have so many chassis parts in common with the C700, the enlargers themselves can still be fully refurbished without problem.  However, the timer/exposure meters are not likely to be worth servicing as the probes and many other parts are no longer available.


Enlargers | Major Components | Negative Carriers | Accessories | Lamps

Enlargers

Status

431-102 Concept Six "Paperhandler" Condenser Enlarger D
431-202 Concept Six "Paperhandler" Dichroic Enlarger  with 402-019 lamphouse D
431-107 Concept Six "Paperhandler" Dichroic Enlarger  with 403-722 lamphouse D
431-103 Concept Six CS-25 Condenser Enlarger D
431-203 Concept Six CS-25 Dichroic Enlarger  with 402-019 lamphouse D
431-104 Concept Six CS-50 Condenser Enlarger D
431-204 Concept Six CS-50 Dichroic Enlarger  with 402-019 lamphouse D
431-108 Concept Six CS-50 Dichroic Enlarger  with 403-722 lamphouse D


Major Components

431-502 Concept Six Paperhandler Chassis less lamphouse D
431-503 Concept Six CS-25 Chassis less lamphouse D
431-504 Concept Six CS-50 Chassis less lamphouse D
402-163 B600 Condenser Lamphouse D
403-725 C700/Concept Six Condenser Lamphouse DL
402-019 Chromega B Dichroic Lamphouse with standard power supply D
402-043 Chromega B Dichroic Lamphouse with stabilized power supply D
402-045 Chromega B Dichroic Lamphouse without power supply D
403-722 Super Chromega C-700 Dichroic Lamphouse  D
412-027 Standard Power Supply for Chromega B Dichroic lamphouse D
412-030 Stabilized Power Supply for Chromega B Dichroic lamphouse D


Negative Carriers

423-115 Minox format Glassless Rapid Shift Carrier DL
423-117 35mm Glassless Rapid Shift Carrier DL
423-118 126 Instamatic Glassless Rapid Shift Carrier DL
423-120 2¼"x2¼" (6x6cm) Glassless Rapid Shift Carrier DL
423-122 110 Format Glassless Rapid Shift Carrier DL
423-123 Mounted 35mm Slide Carrier DL
423-126 2¼"x1-5/8" (6x4.5cm) Glassless Rapid Shift Carrier DL
423-129 2¼"x2¼" (6x6cm) Universal Glass Carrier with anti-newton glass D


Accessories

404-875 Universal 75W Voltage Stabilizer  DL
429-004 Red Safety Filter for condenser enlargers DL
429-060 Under the Lens Filter Holder for red and variable contrast filters DL
473-121 Heat Absorbing Glass for condenser lamphouse DL
429-062 Copy Camera Attachment  (requires T mount adapter) DL
429-064 Adapter Kit for mounting dichroic lamphouse to Concept Six chassis DL
479-011 Dust Cover

DL

429-015 Portrait Diffusion Grid DL
429-036 Filter Drawer for condenser lamphouse (replacement) O
472-002 Supplementary Condenser for lenses shorter than 50mm

DL

472-003 Double Condenser set, mounted   (B-600 only) DL
472-004 Single Condenser Lens only DL
472-007 Upper Condenser Lens with frame  (C-700 only) DL
S31102 Concept Six Enlarger Instruction Manual C


Lamps

471-038 PH140 Opal Enlarger Lamp, 75W 120V for condenser lamphouse C
471-043 Quartz Halogen Reflector Lamp, 75W 27V for Chromega B Dichroic lamphouse C
471-400 Quartz Halogen Reflector Lamp, 85W 82V for C-700 Dichroic lamphouse C
