Chromega F
10"x10" Enlarger

Introduced: 1973
Discontinued: 2014

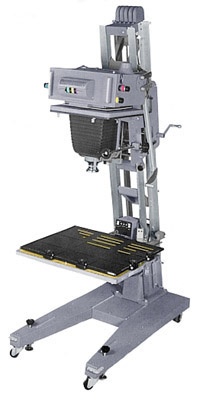

Super Chromega F Dichroic II

The Omega F had been offered with condenser head or non-dichroic Chromega lamphouse, but when the Super Chromega F Dichroic head was introduced, the condenser lamphouse was discontinued as well. The chassis itself remained the same, but the carriage was updated with new negative carrier and lamphouse lifting levers, and the Attachment for Small Negatives was discontinued. The Chromega F should be considered for formats down to 6x9cm only, as it is not designed to easily accept lenses shorter than 100mm.

Standard chassis features still include built-in negative masking down to 4x5, heavy duty castered floor stand with quad aluminum girders, and 3 position 24"x32" baseboard. The dichroic lamphouse features quad lamp1000W quartz-halogen illumination, wall mounted cooling blower, and thermo safety cutoff. Instead of interchangeable light mixing boxes, which would be cumbersome in this size, the lamphouse uses a simpler series of Light Intensification Masks to increase light output for 5x7, 4x5, and 6x9cm formats.

Used Advice:  Fully serviceable and good deals on used units are available, but because of its weight, be prepared for significant shipping costs.  Missing accessories can be pricey, so check that the unit is complete.


Enlargers | Components | Neg. Carriers | Lens Mounts | Lens Discs | Accessories | Lamps

Enlargers



Status

406-020

Chromega F Dichroic II Enlarger  O


Major Components

406-010 F Enlarger Chassis only DL
406-805 Chromega F Dichroic Lamphouse with power supply and blower DR
406-815 Chromega F Dichroic II Lamphouse with power supply and blower DL
412-035 Chromega F Dichroic Power Supply  (replacement) DL


Negative Carriers

423-715 10"x10" Universal Glass Carrier DL
473-715 Anti Newton Glass for 423-715  (top only) DL
473-099 Replacement Glass set for 423-715 carrier O


Lens Mounts

421-161 For 100mm f5.6 Componon-S Lens D
421-162 For 105mm Omegaron, Omicron-EL, Rodagon D
421-171 Flat Lens Mount with reversible ½" cup DL
421-172 2" Cone for 135mm lenses DL
421-188 1½" Cone for 135-210mm lenses   DL
421-181 Cone for 240-300mm lenses DL
421-189 Cone for 300mm f5.6 Componon-S D
421-190 Cone for 300-360mm Rodagon DL


Lens Discs

421-000 Blank Flat Lens Disc DL
421-001 Lens Disc with 39mm hole DL
421-002 Flat Lens Disc with 32.5mm hole DL
421-008 Flat Lens Disc with 50mm hole DL
421-013 Flat Lens Disc with 39mm Leica threaded flange DL
421-022 Flat Lens Disc with 42mm hole DL
421-023 For 180mm Componon-S D
421-024 For 210mm Componon-S DL
421-054 Flat Lens Disc with 52mm hole DL
421-055 Flat Lens Disc with 62mm hole DL
421-010 39mm Leica thread Lock Ring DL
421-014 50mm threaded Lock Ring DL


Accessories

412-004 Power Lift with remote control switch  DL
412-022 Power Relay for timers with less than 1000W capacity DL
429-004 Red Safety Filter  (use with 429-029 or 429-027) DL
429-027 Under Lens Filter Holder  (adjustable type)  (includes red filter) DL
429-029 Under Lens Filter Holder for red and variable contrast filters DL
429-069 Horizontal Projection Attachment  (for wall projection) D
429-163 Light Intensifier Mask Set of 3  (for formats smaller than 8"x10") DL
S06010 Chromega F Dichroic II Enlarger Instruction Manual C


Lamps

471-029 Quartz Halogen Relector Lamp, 250W 22.5V for dichroic lamphouse C
471-045 Lamp Indicator Lamp for dichroic lamphouse power supply O
