Omega C-67
6x7cm Enlarger

Introduced: 1972
Discontinued: 1980

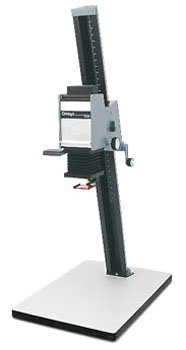

C-67XL Condenser Enlarger

The C67 chassis was initially introduced with the dichroic colorhead as the Super Chromega "C" Dichroic Enlarger. It was not until 1976 that the condenser lamphouse was made available and the name C67 was applied to both condenser enlarger and chassis.

The column was an XL length double-wall girder with rack and pinion elevation control.  Lens mounts used were the same as for the B66, but negative carriers were unique. (Later C760 carriers can be used with the C67, though they do not work as well as the originals.)

Essentially, it provided the same features and professional quality as the D5 enlargers but in a medium format enlarger at a lower price.

When the C700 Dichroic Lamphouse was introduced, the Super Chromega C Lamphouse was discontinued along with the Chromega B Dichroic Lamphouse, so for the last year of its production, the C67 was sold with the C700 colorhead.

Used Advice: The C67 is fully serviceable, but some parts may be expensive if they need to be remanufactured.  Plastic parts in the elevation lock system were prone to breakage.


Enlargers | Major Components | Negative Carriers | Lens Mounts | Accessories | Lamps

Enlargers

Status

403-513 C67XL Condenser Enlarger D
403-508 Super Chromega C Dichroic Enlarger D
402-507 C67XL Dichroic 700 Enlarger D


Major Components

403-120 "C" Chassis with baseboard D
403-505 C67XL Chassis with baseboard D
403-825 C67 Condenser Lamphouse D
403-822 Super Chromega C Dichroic Lamphouse with power supply D
403-722 Super Chromega C-700 Dichroic Lamphouse D
403-730 Solid State Voltage Stabilizer for Super Chromega C-700 Dichroic DL


Negative Carriers

423-217 Minox format  D
423-223 110 Format  D
423-220 126 Instamatic  D
423-218 35mm Half Frame D
423-219 35mm Full Frame D
423-225 Mounted 35mm Slide Carrier D
423-228 2¼"x1-5/8" (6x4.5cm)  DL
423-222 2¼"x2¼" (6x6cm)  D
423-224 2¼"x2¾" (6x7cm)  DL
423-233 2¼"x2¾" (6x7cm) Universal Glass Carrier with anti-newton glass D


Note: C760 carriers can be used with C-67 enlargers




Lens Mounts

421-005 Blank Lens Disc DL
421-006 Recessed Lens Mount - 32.5mm hole D
421-007 Recessed Lens Mount - 25mm hole D
421-016 Lens Disc - 32.5mm hole D
421-017 Lens Disc - 39mm hole DL
421-019 Lens Disc - 25mm hole DL
421-020 Lens Disc with 39mm threaded flange DL
421-010 39mm Leica thread Lock Ring DL


Accessories

429-188 CA-Type 35mm Light Mixing Chamber for Super Chromega C lamphouse D
429-187 CC-Type 2¼"x2¾" (6x7cm) Mixing Chamber for Super Chromega C (replacement) D
429-004 Red Safety Filter for condenser and diffusion enlargers DL
429-028 Under the Lens Filter Holder for red and variable contrast filters DL
473-124 Heat Absorbing Glass for condenser lamphouse  (replacement) DL
479-012 Dust Cover D
429-012 Portrait Diffusion Grid DL
472-053 Standard Condenser for condenser lamphouse  (replacement) DL
472-054 Auxiliary Condenser for 35mm and smaller formats  (replacement) DL
429-090 Heavy Duty Wall Mount DL
429-097 Heavy Duty Wall Brace DL
375-001 Enlarging Table for all Omega B and C enlargers D
429-367 Adapter Kit to mount C700 dichroic lamphouse to C67 condenser enlarger

DL

429-368 Adapter Kit to mount C760 dichroic lamphouse to C67XL chassis DL
S03508 C67 and Super Chromega C Dichroic Enlarger Instruction Manual C


Lamps

471-038 PH140 Opal Enlarger Lamp, 75W 120V for condenser lamphouse C
471-033 Quartz Halogen Reflector Lamp, 150W 21V for Chromega C lamphouse C
471-400 Quartz Halogen Reflector Lamp, 85W 82V for C700 dichroic lamphouse C
