Automega B-9

2¼"x2¼" Enlargers

Introduced: 1960
Discontinued: 196x

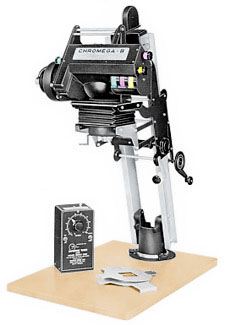

Chromega B-10 Enlarger

The B-9 and B-10 enlargers were specifically designed to provide a medium format alternative to the Auto-Chromega D-4 color enlarger.  No condenser head was available for either of these models - just the Chromega B head and the Omega-Sphere, which was a Chromega head without the filter assembly, intended for black and white printing.

Initially, the negative carriers were the same series used with the B-7/B-8 enlargers, but subsequently new carriers were introduced, specifically for the color enlargers, with white top plates and black anodized bottom plates.

Since a B-7 or B-8 chassis could be purchased with a Chromega B or Omega-Sphere lamphouse for about the same price as a B-9 or B-10 enlarger, one questions whether these models were necessary at all.  The Chromega B head and Omega-Spheres did not prove to be particularly popular, and within a few years, the B-9 and B10 were withdrawn.

Used Advice: Since the non-dichroic Chromega lamphouses are considered obsolete, the B-9 and B-10s would only be practical as diffusion enlargers for black and white printing.


Enlargers | Major Components | Negative Carriers | Lens Mounts | Accessories | Lamps

Enlargers

  Status
1100 Auto-Chromega B-9 Autofocus Enlarger   D
1104 Auto-Omega-Sphere B-9 Autofocus Enlarger D
1101 Chromega B-10 Enlarger  D
1105 Omega-Sphere B-10 Enlarger  D


Major Components

1102 Chromega Lamphouse and Timer for B-9/B-10 D
1103 Chromega Lamphouse and Timer for B-5/B-6/B-7/B-8 D
1106 Omega-Sphere Lamphouse and Timer for B-9/B-10 D
1107 Omega-Sphere Lamphouse and Timer for B-5/B-6/B-7/B-8 D


Negative Carriers

5213 Glassless, Rapid-Shift  (specify format)  (replaces 5202) D
5214 Glass, Rapid-Shift  (specify format)  (replaces 5201) D
5219 Mounted 35mm Transparency  (replaces 5204) D
5220 Unmounted 35mm Transparency with slot for grey scale  (replaces 5205) D
5215 100' Spool - glassless rapid-shift (specify 16, 35 or 70mm)  (replaces  5206) D
  (Note: Beseler 23C carriers will fit the B-9/B10 enlargers with slight modification)


Lens Mounts

3370 Flat Mount for 50mm lens  (later as 421-170) DR
3371 Lens Cone 1½" for 75-80mm lenses  (later as 421-188) DR
3172 Lens Cone 2" for 90mm lenses  (later as 421-172) DR
3378 Leica-threaded Lens Mount  D


Autofocus Mount and Track Kits  (for B-9 enlarger only)



3250

Custom Track plus Mount for 50mm lenses   D

3251

Custom Track plus Mount for 75-80mm lenses   D

3252

Custom Track plus Mount for 90mm lenses   D


Lens Discs

7428 Lens Mounting Disc (for lenses not purchased from Omega) D


Accessories

1109 Color Filter Unit  (converts Omega-Sphere to Chromega lamphouse) D
1112 Voltage Stabilizer 250W  115V  60 cy. D
7142 Variable Contrast Filterholder  (for mounted plastic 2½"x2½" filters) D
7200 Auxiliary Focusing Attachment (for 1:1 prints and reductions) D
7204 Copy Attachment  (accepts 2¼"x3¼" Speed Graphic film holders) D
7206 Transparent Dust Cover D
7275 Flexible Focusing Shaft Extension D
7278 Heavy Duty Wall Mount D
7403 Micro Attachment  (for photo micrography) D
7429 Portrait Diffusion Grid Attachment D


Lamps

6415

No. 100T8/1 SC, 20V 100W  (later #471-021) C
