Omega A3
35mm Enlarger

Circa: 1967-1970

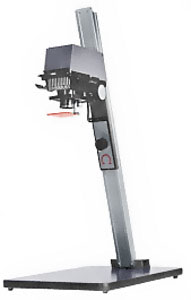

Omega A-3 Condenser Enlarger

Intended as a basic entry-level 35mm enlarger, the A3 was very unique design nonetheless. Its reflex type condenser lamphouse bore more resemblance to a Durst enlarger than other Omega designs.

It was limited to just two formats - 35mm and 126, and most accessories were unique to the A3. It was sold with only the short column and no colourhead was ever available.

Used Advice: Because the components of the A-3 were unique to this model, it should be closely examined to ensure that all parts are present as it  may be extremely difficult to obtain replacements.


Enlargers

  Status
401-003 A-3 Enlarger, complete less lens D
401-005 A-3 Enlarger, complete with 50mm Omegar lens D


Negative Carriers

423-055 35mm Full Frame  (replacement) D
423-054 126 Instamatic  D
423-050 Blank for special sizes  D


Lens Mounts

421-035 Lensboard for 50mm Omegar  (replacement) D


Accessories

429-005 Red Filter with retaining ring  (replacement) D
429-024 Variable Contrast Filter Holder  D
429-050 Filter Holder  (replacement) D
472-007 Upper Condenser Lens (black dot)  (replacement) C
472-008 Lower Condenser Lens (red dot)  (replacement) D
473-110 Heat Absorbing Glass D
479-012 Dust Cover D
S01003 A-3 Enlarger Instruction Manual C


Lamps

471-001 PH111A Opal Enlarger Lamp, 75W 125V C
