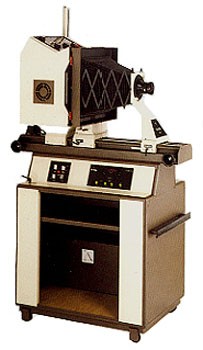

DeVere 515H 12"x15" Horizontal Enlarger

DE VERE
515H

12"x15" format
horizontal enlarger

The 515H was designed to provide a large format mural enlarger accommodating 35mm to 12"x15" negatives at moderate cost. As such, there was the full range of DeVere light sources available, and the unit could be converted to copy camera use.

The 515H was essentially replaced in the DeVere line by the 3040 Metro.

**Chassis**
2165	120V Motorized Horizontal Enlarger Chassis (with internal stabilizer)	D
2160	240V Motorized Horizontal Enlarger Chassis (with internal stabilizer)	D

**Lightsources**
2161	1200W 240V Dichromat Head	C
1666	1200W 240V Closed Loop Dichromat Head
2106	240V Varicon 5"x7" lamphouse less condensers
2617	240mm condenser lens assembly for Varicon Head
2614	180mm condenser lens assembly for Varicon Head
2615	120mm condenser lens assembly for Varicon Head
2616	100mm condenser lens assembly for Varicon Head
1950	Point Source Conversion Kit for Varicon Head	D
2010	240V Cathomag 5"x7" cold cathode lamphouse	C
2018	1200W 240V Difcon lamphouse

**Negative Carriers**
2162	12"x15" Universal Glass Negative Carrier	DL
2163	8"x10" Master Negative Carrier	C
2008	5"x7" Glass Negative Mask for 2163 (old type)	D
2045	5"x7" Glass Negative Mask for 2163 (new type)	C
2009	Small Format Adapter for 2163	C
1910	4"x5" Cut Film Negative Mask for 2009	C
1911	9x12cm Cut Film Negative Mask for 2009	C
1912	6x9cm Roll Film Negative Mask for 2009	C
1919	6x7cm Roll Film Negative Mask for 2009	C
1913	6x6cm Roll Film Negative Mask for 2009	C
1967	6x4.5cm Roll Film Negative Mask for 2009	C
1914	35mm Roll Film Negative Mask for 2009	C
1957	35mm Mounted Transparency Mask for 2009	C
1940	Custom Mask, made to order for 2009	C
2011	Pin Registered 8"x10" Master Negative Carrier	D
2014	8"x10" Negative Carrier Glass for 2107 Carrier	C
2013	8"x10" Anti-Newton Glass for 2107 Carrier	C
1514	5"x7" Negative Carrier Glass for 2008 Mask (12.5cm x 17.5cm)	C
2623	5"x7" Anti-Newton Glass for 2008 Mask (12.5cm x 17.5cm)	C
1515	5"x7" Negative Carrier Glass for 2045 Mask (14cm x 19cm)	C
2677	5"x7" Anti-Newton Glass for 2045 Mask (14cm x 19cm)	C
1915	4"x5" Negative Carrier Glass for 2009 Adapter	C
1970	4"x5" Anti-Newton Glass for 2009 Adapter	C

**Lens Mounts**
1922	3" Recess Lens Mount for 50-90mm lenses - Blank	C
1977	3" Recess Lens Mount with 39mm Leica thread	C
2029	1½" Recess Lens Mount for 80-90mm lenses with 39mm Leica thread	D
1921	Flat Lens Mount for 90-240mm lenses - Blank	C
1973	Flat Lens Mount with 39mm Leica thread	C
1974	Flat Lens Mount with 50mm thread	C
2012	Extended Lens Mount for 300mm and shutter lenses - Blank	C
1923	Lens Mount Extension Tube (for reductions)	C
1985	Extended Lens Mount with 39mm Leica thread (for reductions)	C
1971	Adapter for Durst lensboards	C

**Accessories**
2521	1.5 metre track module
2522	1.0 metre track module extension
2523	1.5 metre track module extension
8011	1.5 metre Heavy Duty Front Track Module	C
8052	1.5 metre Heavy Duty Rear Track Module
8013	1.0 metre Track Module Extension
8012	1.5 metre Track Module Extension
8057	1.5 metre Front Boxing-in Kit for 8011
8058	1.5 metre Rear Boxing-in Kit for 8052
8055	1 metre Boxing-in Kit for 8013
8054	1.5 metre Boxing-in Kit for 8012
2103	8"x10" Copy Adapter Kit
1102	8"x10" Springback	O
1105	5"x7" Springback	O
1106	4"x5" Springback (also accepts standard roll film backs)	O
4806	8"x10" Springback	C
4807	5"x7" Springback	C
4808	4"x5" Springback (also accepts standard roll film backs)	C
2005	8"x10" Light Collecting Box for Dichromat Head (replacement)	C
2043	8"x10" Light Collecting Box for Closed Loop Dichromat Head (replacement)	C
2028	240mm Light Collecting Box for Dichromat Head	C
2006	5"x5" Light Collecting Box for Dichromat Head	C
2042	5"x5" Light Collecting Box for Closed Loop Dichromat Head	C
2019	6x7cm Light Collecting Box for Dichromat Head	C
2041	6x7cm Light Collecting Box for Closed Loop Dichromat Head	C
3849	Density Probe for Closed Loop Dichromat Head	C
2023	Large Swingaway Amber Filter with mounting post
2024	Large Swingaway Red Filter with mounting post	C

**Lamps**
2016	ELH Lamp for Dichomat and Difcon lamphouses	C
1522	PH 2120 150W 240V Enlarging Lamp for Varicon lamphouse	C
2015	Cold Cathode Tube for Cathomag Lamphouse
1521	6V 48W Point Source Lamp
