DeVere model 504 Enlarger

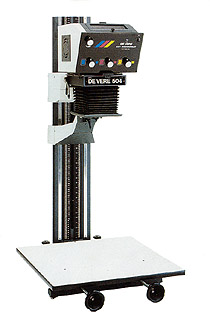

DeVere 504 4"x5" Enlarger

DE VERE
504

4"x5" format
vertical enlarger

The 504 is one of the best known and longest lived DeVere models. Through its production life, it has seen several design changes and multiple versions of Dichromat colourhead. The column is the classic DeVere lathe bed type, and the enlarger features optical axis negative and lens stage tilts, as well as built-in negative masking. It can be configured in wall mount, floor standing, and bench versions, with the latter also available with extra long columns.

Dichromat heads are available in both 250W and 500W versions, each with optional closed loop circuitry. A full range of heads for black and white printing can also be fitted. The DeVere 504 models are the most precisely engineered and manufactured 4x5 enlargers available.

**Chassis**
7796	Bench Enlarger Chassis Mk 3 (24"x24" baseboard)	C
8000	Extended Bench Enlarger Chassis Mk 3 (24"x30" baseboard)	C
7797	Wall Mount Enlarger Chassis Mk 3 (without baseboard)	C
7799	Floor Standing Enlarger Chassis Mk 3 (30"x40" baseboard)	C
7798	Extended Floor Standing Enlarger Chassis Mk 3	C
8101	Bench Enlarger Chassis Mk3 with Autofocus (24"x24" baseboard)	C
8102	Wall Mount Enlarger Chassis with Autofocus (without baseboard)	C
8105	Extended Wall Mount Chassis with Autofocus (without baseboard)	C
8103	Floor Standing Enlarger Chassis with Autofocus (30"x40" baseboard)	C
8104	Extended Floor Standing Chassis with Autofocus	C
1980	Bench Enlarger Chassis Mk II	D
1981	Floor Standing Enlarger Chassis Mk II	D
1982	Wall Mount Enlarger Chassis Mk II	D
1998	Extended Floor Standing Enlarger Chassis Mk II	D

**Lightsources**
1992	250W 120V Dichromat Mk 4 Head (requires power supply)	C
1983	250W 240V Dichromat Mk 4 Head (requires power supply)	C
1991	500W 120V Dichromat Mk 5 Head (requires power supply)	C
1984	500W 240V Dichromat Mk 5 Head (requires power supply)	C
7793	250W 120V Dichromat Closed Loop Head (requires power supply)	C
7792	250W 240V Dichromat Closed Loop Head (requires power supply)	C
7795	500W 120V Dichromat Closed Loop Head (requires power supply)	C
7794	500W 240V Dichromat Closed Loop Head (requires power supply)	C
1906	Varicon lamphouse, less condensers (specify 120 or 240V)	C
1964	180mm condenser lens and mount for Varicon Head	C
1965	120mm condenser lens and mount for Varicon Head	C
1966	100mm condenser lens and mount for Varicon Head	C
1950	Point Source Conversion Kit for Varicon Lamphouse (req. 2902 for 120V)
1905	Cathomag cold cathode lamphouse (req. 2902 transformer for 120V use)	C
1994	500W 120V Difcon Mk 2 lamphouse (requires power supply)
1993	500W 240V Difcon Mk 2 lamphouse (requires power supply)
1956	250W 120V Varicontrast lamphouse (requires power supply)
1954	250W 240V Varicontrast lamphouse (requires power supply)

Power Supplies
1995	250W 120V Transtab Stabilized Power Supply	D
1962	250W 240V Transtab Stabilized Power Supply	D
1999	250W 120V Transtab Stabilized Power Supply with Timer	D
1961	250W 240V Transtab Stabilized Power Supply with Timer	D
2636	500W 120V Transtab Stabilized Power Supply	D
2619	500W 240V Transtab Stabilized Power Supply	D
2638	500W 120V Transtab Stabilized Power Supply with Timer	D
2618	500W 240V Transtab Stabilized Power Supply with Timer	D
7745	SMPC 250W 120V Stabilized Power Supply (permanent AC cord)
7746	SMPC 250W 120V Stabilized Power Supply (detachable AC cord)
7755	SMPC 500W 120V Stabilized Power Supply
7740	SMPC 250W 240V Stabilized Power Supply	C
7750	SMPC 500W 240V Stabilized Power Supply	C
1996	250W 120V Power Supply
1903	250W 240V Power Supply	D
2637	500W 120V Power Supply
2620	500W 240V Power Supply
2902	240V to 115V Transformer for Cathomag (required for 120V use)

**Negative Carriers**
1978	Master Negative Carrier MK II (for Mk II and Mk III chassis)	C
1979	Roll Film Troughs for 1978 Mk II Negative Carrier	C
1997	Lift Pins for 1978 Mk II Negative Carrier
1908	Master Negative Carrier MK I (for Mk I chassis only)	D
1918	Roll Film Troughs for 1908 Mk I Negative Carrier	D
1945	Lift Pins for 1908 Mk I Negative Carrier	D
1915	4"x5" Negative Carrier Glass (replacement)	C
1970	4"x5" Anti-Newton Glass	C
1909	Pin Registered Negative Carrier Mk II (for Mk II and Mk III chassis)
1969	Pin Registered Negative Carrier Mk I (for Mk I chassis only)	D
1952	70mm Roll Film Drawer Mk II (for Mk II and Mk III chassis)
1942	70mm Roll Film Drawer Mk I (for Mk I chassis only)	D

**Glassless Masks for Master Negative Carrier**
1910	4"x5" Cut Film Negative Mask	C
1911	9x12cm Cut Film Negative Mask	C
1912	6x9cm Roll Film Negative Mask	C
1919	6x7cm Roll Film Negative Mask	C
1913	6x6cm Roll Film Negative Mask	C
1967	6x4.5cm Roll Film Negative Mask	C
1914	35mm Roll Film Negative Mask	C
1957	35mm Mounted Transparency Mask	C
1953	Kodak Disc Negative Carrier	D
1940	Custom Mask, made to order	C

**Kwik Negative Carrier System**
7801	Kwik Carrier Housing	D
7802	Mask Adapter Drawer	D
7803	Pin Registration for 4"x5"	D
7804	13cm x 18cm Glass Drawer	D
7805	Pin Register for 13x18cm	D
7806	Shuttle Carrier Drawer	D
7807	Card Carrier Drawer	D
7808	Rapid Carrier Drawer	D
7809	Pin Register Conversion Kit	D
7811	Shuttle Carrier 35mm	D
7812	Shuttle Carrier 6cm	D
7823	Rapid Carrier 35mm	D
7814	Small Format Card Carrier	D
7824	Rapid Card Carrier 6x4.5cm	D
7825	Rapid Carrier 6x6cm	D
7826	Rapid Carrier 6x7cm	D
7827	Rapid Carrier 6x9cm	D
7828	Rapid Carrier 4"x5"	D

**Lens Mounts**
1922	3" Recess Lens Mount for 28-35mm lenses - Blank	C
1977	3" Recess Lens Mount with 39mm Leica thread	C
1920	1" Recess Lens Mount for 50mm lenses - Blank	C
1972	1" Recess Lens Mount with 39mm Leica thread	C
1921	Flat Lens Mount for 60-240mm lenses - Blank	C
1973	Flat Lens Mount with 39mm Leica thread	C
1974	Flat Lens Mount with 50mm thread	C
1923	Lens Mount Extension Tube (for reductions)	C
1985	Extended Lens Mount with 39mm Leica thread (for reductions)	C
2012	Extended Mount for shutter lenses - Blank	C
1971	Adapter for Durst lensboards	C

**Accessories**
1907	4"x5" Reflex Copy Adapter Kit (with springback and counterbalance weight)
1946	Copy Light System (incandescent, clamps to baseboard)
1939	Drop Table Assembly for Wall Mount chassis	C
1916	Kit to convert Bench Enlarger to Wall Mount	C
2624	Auxiliary Support Strut for Drop Table	C
1935	4"x5" Light Collecting Box for Dichromat Head Mk 3 (replacement)	D
1987	4"x5" Light Collecting Box for 250W Dichromat Head Mk 4 (replacement)
1989	4"x5" Light Collecting Box for 500W Dichromat Head Mk 5 (replacement)
1934	6x7cm Light Collecting Box for Dichromat Head Mk 3	D
1988	6x7cm Light Collecting Box for 250W Dichromat Head Mk 4	C
1990	6x7cm Light Collecting Box for 500W Dichromat Head Mk 5	C
7703	6x7cm Light Collecting Box for 250W Closed Loop Dichromat	C
7707	6x7cm Light Collecting Box for 500W Closed Loop Dichromat	C
7702	35mm Light Collecting Box for 250W Closed Loop Dichromat
7706	35mm Light Collecting Box for 500W Closed Loop Dichromat
2691	Chassis Mounted Shutter for standard Dichromat lamphouse
2690	Chassis Mounted Shutter for Closed Loop Dichromat lamphouse
3849	Density Probe for Closed Loop Dichromat
1944	Heat Filter 14cm sq. for Varicon lamphouse	C
1933	Analyzer Diffuser Disc	C
1955	Universal Exposure Timer 120/240V	C
3815	Footswitch for Universal Timer	C
3845	120V Timer Interface for timers with US type plugs	C
3847	Interface for Varicon/Cathomag heads and 1955 Universal Timer	C
2909	Anti Vibration Mounting Kit (for ship and aircraft installations)
1963	Swingaway Amber Filter with mounting post	C
1948	Horizontal Projection Mirror	D

**Lamps**
1748	ELC Lamp for Dichromat, Difcon, and Varicontrast Lamphouse	C
	150W 120V Enlarging Lamp for Varicon lamphouse	C
1522	150W 240V Enlarging Lamp for Varicon lamphouse	C
1925	Cold Cathode Tube for Cathomag Lamphouse
	6.5V 0.3A Panel Lamp for Dichromat Lamphouse
1521	6V 48W Point Source Lamp
